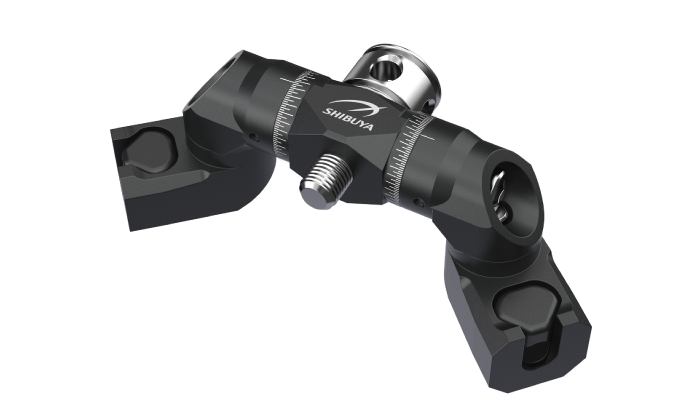

Shibuya Varis Adjustable V Bar
Shibuya Varis Adjustable V Bar
Couldn't load pickup availability
The lightweight V-bar standard, “CARUNO V-Bar,” has evolved into an even more refined successor model.
The body has been redesigned with a wider profile, greatly improving stability during anchoring. While maintaining its beautifully faceted form, the new model continues to use the ultra-light yet high-strength SA bolt, achieving a total weight of just 47 g (average value at 40°) including the bolt and body.
Thanks to this exceptional lightness, the burden on the archer is reduced even during long shooting sessions, while offering greater flexibility in stabilizer selection and enabling more delicate balance adjustments.
Anti-Loosening Design with Opposing Thread Directions
Most products use bolts that tighten in the same direction on both sides. However, this model adopts bolts with opposing tightening directions—the right side tightens clockwise, and the left side tightens counter clockwise.
This ensures that each bolt tightens toward the direction of downward force on the side rod, effectively preventing unexpected loosening during use.
Newly Designed Click-Lock QD Connect (Patent Pending)
The redesigned quick-detach connector features a built-in click mechanism for improved retention and drop prevention.
By giving the QD pin a triangular-based geometry, the contact area at lock engagement has been increased, allowing for a more secure lock. This greatly enhances resistance to loosening.
Additionally, the dovetail structure improves alignment precision for the side rod mounting position.
Compatible with PRIMUS Aluminium V-Bar Bolt
Fully compatible with the aluminium V-bar bolt included with PRIMUS stabilizers, enabling a wide variety of weight configurations.
PRIMUS V-Bar Bolt:
Uses a newly developed ultra-high-strength material even stronger than A7075 high-strength aluminium alloy.
CNC machining ensures a refined, precision-cut design.
The material has approximately one-third the density of stainless-steel V-bar bolts, contributing to a lightweight yet high-strength system.
Spec Table
| Compatible Stabilizers | Thread size: 5/16-24 Not compatible with bolts longer than 12 mm. |
|---|---|
| Colour | Black [Body] |
| Weight | With bolt: 192 g Without bolt: 153 g |
| Included Items | V-bar bolt 6 mm hex wrench |
