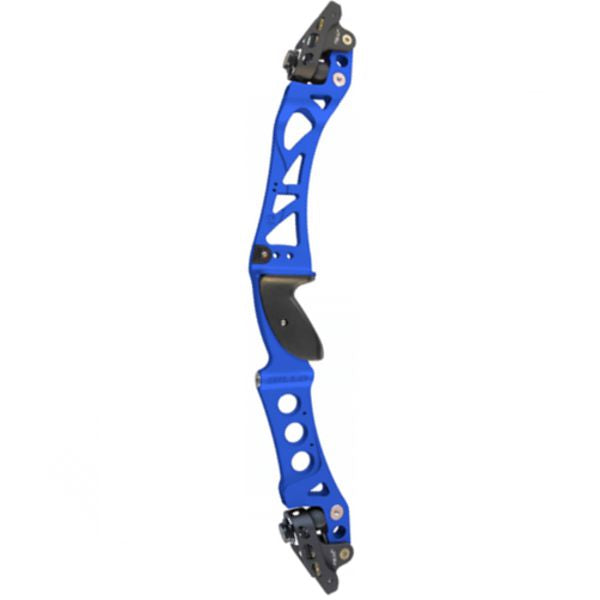

Gillo GT M 25in ILF riser

Gillo GT M 25in ILF riser

Regular price €548,19 EUR
Regular price Sale price €548,19 EUR
Sale Sold out
Taxes included.
Special Order. Allow 2-3 weeks.
Left or Right Handed
Colour
Size

A lower cost version of the Gillo GT riser. The GT M includes most features of the standard 25in ILF model including the floating limb pocket design with 30% poundage adjustment range and limb alignment system, but with standard stainless steel bolts and a black colour plastic grip. Available in selected RH and LH models in matt anodized finish.

  • Recurve & Bare Bow riser
  • ILF Limbs compatible

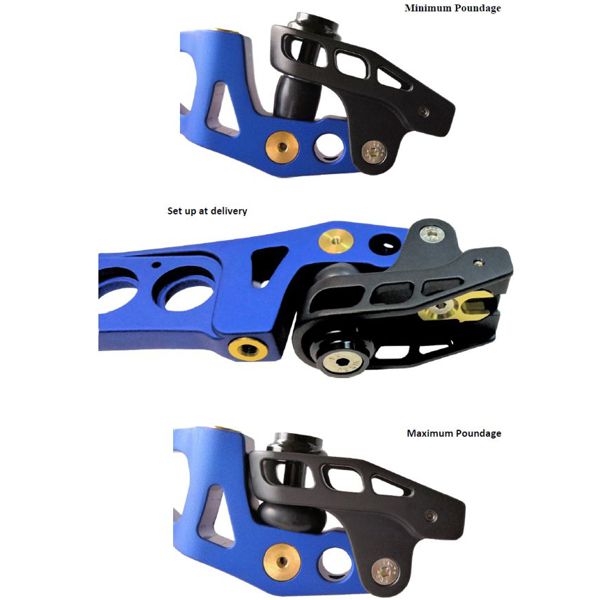

  • Floating limbs pockets allow over 30% poundage adjustment range
  • Integrated shock absorbers
  • 25in length, RH and LH versions
  • Body and Pockets machined from solid Aluminium bar
  • Matte sandblasted anodized surface
  • Aluminium 7075 Limbs alignment plates
  • Special round seats for optional balancing weights
  • Stainless steel limbs bolts assembled in AL 7075 black anodized bodies
  • G1 ABS black colour medium grip
  • 2 front and 3 back 5/16-24 UNF tapped holes on back for more stabilizers
  • Front center stabilizer bushing 1mm off from axis for perfect balance
  • Compatible to all G1, GQ and G5 Bare Bow weights, grips and accessories
  • Approx. 1290g total weight
  • Packing includes long clicker plate, Manual with Warranty card, 4 Allen wrenches, 5 clicker and BB weights SS screw, 2 bolt locking Brass grub screws

Dual Colour Options:

  • RH Black/Blue (KBL)
  • RH Black/Grey (KGY)
  • RH Black/Green (KGR)
  • RH Black/Red (KRD)



Optional accessories available:

  • G03-PF-01-AL-BK - pair of Formula limbs pocket to transform riser to G03L-RSF-27 version
  • G04-DK6-AL/ST - 6 disk weights kit (Al Black, SS Gold)
  • G01-DK6 - 6 Stainless Steel disk weights kit
  • G05-DK2 - 2 steel disk heavy weights kit
  • G03-DK2-TG - 2 Tungsten Disks gold colour
  • G02-CKK - Plastic clicker plates in different colours and length
  • G01-BW-01 - Bare Bow covers from 270g to 830g
  • G01-BW-02 - Bare Bow Covers from 400g to 1170 g
  • G03-BW-03 - The Hammers - Bare bow kit, AL or SS
  • G04-BW-04 - Bare Bow covers from 300g to 950g
  • Various Plugs to cover bottom weights holes, made by wood or plastic 3D printed in various colours
  • Various grips made by wood or plastic 3D printed in various colours



Hole Thread sizes:

  • Limbs Bolts: M8
  • Limbs Bolts side locking: 4 x M5
  • Limbs Pockets side locking: 4 x M6
  • Alignment plate inner locking: 2 x M6
  • Alignment plate side locking: 4 x M5
  • Front stabs: 3 x 5/16-24 UNF
  • Rear stabs: 3 x 5/16-24 UNF
  • Cushion plunger: 2 x 5/16-24 UNF
  • Clicker and Clicker plate: 3 x M4
  • Optional cover: 4 x M4
  • Sight: 2 x 10-24
  • Grip: 2 x M4
