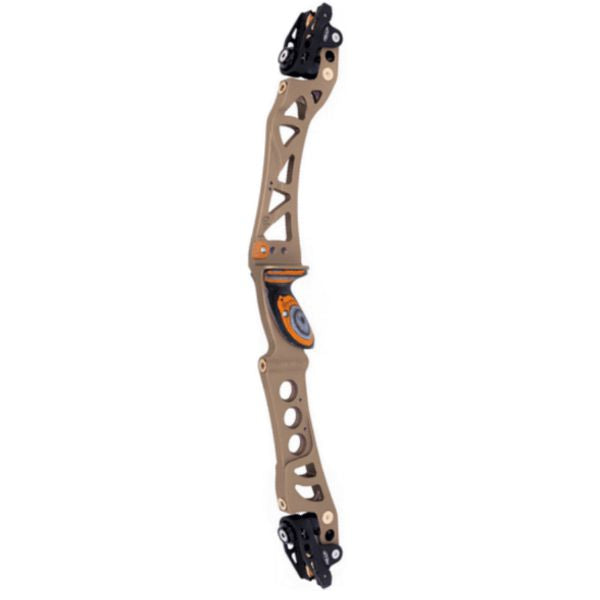

Gillo GT 27in ILF Cerakote riser

Cerakote surface finish.

The next generation of Gillo risers is here!

Achieve a massive 30% poundage adjustment range with the unique Gillo GT limb pocket design.

Recurve & Bare Bow riserILF Limbs compatibleFloating limbs pockets allow over 30% poundage adjustment rangeIntegrated shock absorbers27in length, RH model only.Body and Pockets machined from solid Aluminium barMatte sandblasted anodized surfaceAluminium 7075 Limbs alignment platesSpecial round seats for optional balancing weightsStainless steel limbs bolts assembled in AL 7075 black anodized bodiesHard Wood, Multi-layer colour medium grip3 front stabs bushings, 1 back stabs bushings, all made by Stainless Steel Gold color Titanium Nitride coated2 additional 5/16-24 UNF tapped holes on back for more stabilizersFront center stabilizer bushing 1mm off from axis for perfect balanceCompatible to all G1, GQ and G5 Bare Bow weights, grips and accessoriesApprox. 1450g total weight

• Packing includes long clicker plate, Manual with Warranty card, GRS-03 riser protection sleeve, 4 Allen wrenches, 5x SS screws for clicker and Bare Bow weights, 2x Brass grub screws for limbs bolts locking



  Dual Colour Options:

  • RH Black/Sand



  Optional accessories available:

  • G04-DK6-AL/ST 6 disk weights kit (Al Black, SS Gold)
  • G01-DK6 6 Stainless Steel disk weights kit
  • G05-DK2 2 steel disk heavy weights kit
  • G02-CKK Plastic clicker plates in different colours and length
  • G01-BW-01 Bare Bow covers from 270 gr to 830 gr
  • G01-BW-02 Bare Bow Covers from 400gr to 1170 g
  • G03-BW-03 - The Hammers - Bare bow kit, AL or SS
  • G04-BW-04 Bare Bow covers from 300 to 950 g
  • Various Plugs to cover bottom weights holes, made by wood or plastic 3D printed in various colours
  • Various grips made by wood or plastic 3D printed in various colours



  Hole Thread sizes:

  • Limbs Bolts: M8
  • Limbs Bolts side locking: 4 x M5
  • Limbs Pockets side locking: 4 x M6
  • Alignment plate inner locking: 2 x M6
  • Alignment plate side locking: 4 x M5
  • Front stabs: 3 x 5/16-24 UNF
  • Rear stabs: 3 x 5/16-24 UNF
  • Cushion plunger: 2 x 5/16-24 UNF
  • Clicker and Clicker plate: 3 x M4
  • Optional cover: 4 x M4
  • Sight: 2 x 10-24
  • Grip: 2 x M4
