Gillo GT 25in ILF Cerakote riser

Cerakote surface finish.

The next generation of Gillo risers is here!

Achieve a massive 30% poundage adjustment range with the unique Gillo GT limb pocket design.

• Recurve & Bare Bow riser
• ILF Limbs compatible

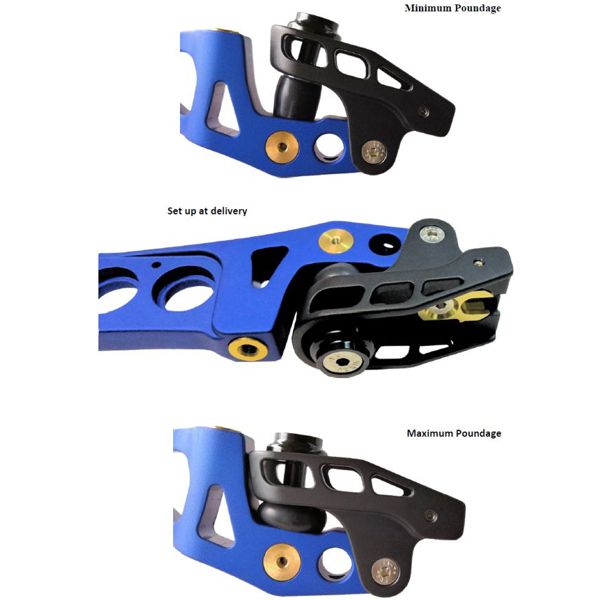

• Floating limbs pockets allow over 30% poundage adjustment range
• Integrated shock absorbers
• 25in length, RH and LH versions
• Body and Pockets machined from solid Aluminium bar
• Cerakote finish surface for body, matte anodized finish for pockets
• Aluminium 7075 Limbs alignment plates
• Special round seats for optional balancing weights
• Stainless steel limbs bolts assembled in AL 7075 black anodized bodies
• Hard Wood, Root colour medium grip
• 3 front stabs bushings, 1 back stabs bushings, all made by Stainless Steel Gold color Titanium Nitride coated
• 2 additional 5/16-24 UNF tapped holes on back for more stabilizers
• Front center stabilizer bushing 1mm off from axis for perfect balance
• Compatible to all G1, GQ and G5 Bare Bow weights, grips and accessories
• Approx. 1350g total weight
• Packing includes long clicker plate, Manual with Warranty card, GRS-03 riser protection sleeve, 4 Allen wrenches, 5 clicker and BB weights SS screw, 2 bolt locking Brass grub screws

Dual Colour Options:

• RH Black/Gold (KGO)
• RH Black/Safety Orange (KSG)
• RH Black/Sand (KSN)
• RH Black/Dark Green (KDG)
• RH Gold/White (OWH)
• RH Black/Fluo Green (KFG)

Optional accessories available:

• G03-PF-01-AL-BK - pair of Formula limbs pocket to transform riser to G03L-RSF-27 version
• G04-DK6-AL/ST - 6 disk weights kit (Al Black, SS Gold)
• G01-DK6 - 6 Stainless Steel disk weights kit
• G05-DK2 - 2 steel disk heavy weights kit
• G03-DK2-TG - 2 Tungsten Disks gold colour
• G02-CKK - Plastic clicker plates in different colours and length
• G01-BW-01 - Bare Bow covers from 270g to 830g
• G01-BW-02 - Bare Bow Covers from 400g to 1170 g
• G03-BW-03 - The Hammers - Bare bow kit, AL or SS
• G04-BW-04 - Bare Bow covers from 300g to 950g
• Various Plugs to cover bottom weights holes, made by wood or plastic 3D printed in various colours
• Various grips made by wood or plastic 3D printed in various colours

Hole Thread sizes:

• Limbs Bolts: M8
• Limbs Bolts side locking: 4 x M5
• Limbs Pockets side locking: 4 x M6
• Alignment plate inner locking: 2 x M6
• Alignment plate side locking: 4 x M5
• Front stabs: 3 x 5/16-24 UNF
• Rear stabs: 3 x 5/16-24 UNF
• Cushion plunger: 2 x 5/16-24 UNF
• Clicker and Clicker plate: 3 x M4
• Optional cover: 4 x M4
• Sight: 2 x 10-24
• Grip: 2 x M4
