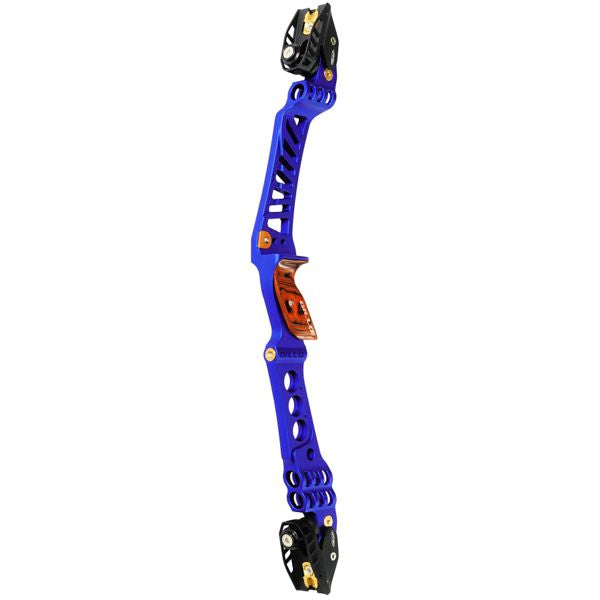

Gillo GF 27in ILF riser

Gillo GF 27in ILF riser

Regular price €963,49 EUR
Regular price Sale price €963,49 EUR
Sale Sold out
Taxes included.
DUE IN OCTOBER
Left or Right Handed
Colour
Size

Long 27 inch model. Recurve aluminium milled riser with new Tunnels design for accepting round balancing plugs (included). Dual colour anodized finish. ILF - International Limb Fitting. Features Gillo floating limb pockets for more than 40% poundage adjustment range. Integrated vibration reduction system. Stainless steel limb bolts. Wood laminated advanced grip. Riser sleeve included. Compatible with G1 and G4 barebow weights. Mass weight 1540g.



  • Recurve and Bare Bow riser
  • ILF Limbs compatible
  • Floating limbs pockets allow up to more than 40% poundage adjustment range
  • Integrated shock absorbers
  • 27.8in length, RH model only
  • Body and Pockets machined from solid Aluminium bar
  • Matte sandblasted anodized surface
  • Aluminium 7075 Limbs alignment plates
  • 3x "The Tunnels" perpendicular holes for round balancing plugs
  • Special round seats on lower part for optional balancing weights
  • Stainless steel limbs bolts assembled in AL 7075 black anodized bodies
  • Hard Wood, stratified G03-MG-M slim advanced grip
  • 1 front stabs bushings, 1 back stabs bushing, both made by Stainless Steel Gold color Titanium Nitride coated
  • 2 special Black anodized Aluminum plugs model G24-TP-01-BK, 5/16 24 tapped, to fit the Tunnels, are included as accessories.
  • Front center stabilizer bushing 1mm off from axis for perfect balance
  • Compatible to all G1, G2, GQ, G5 and GT Bare Bow weights, grips and accessories
  • Approx. 1540 gr mass weight
  • Packing includes also long clicker plate, Manual with Warranty card, GRS-03 riser protection sleeve, 4 Allen wrenches, 5 clicker and BB weights SS screw, 8 Transversal weights locking grub screws, 2 bolt locking Brass grub screws, 2 x G24-PP-01-BK Plastic plugs.



Model / Colours:

  • RH Black (KBK)
  • RH Grey with Black Pockets (KGY)
  • RH Blue with Black Pockets (KBL)
  • RH Red with Black Pockets (KRD)
  • RH Green with Black Pockets (KGR)



Optional accessories available:

  • G04-DK6-AL/SS 6 disk weights kit (Al Black, SS Gold)
  • G01-DK6 6 Stainless Steel disk weights kit
  • G05-DK2 2 steel disk heavy weights kit
  • G03-DK2-TG 2 Tungsten disks Gold color
  • G02-CKK Plastic cliker plates in different colours and length
  • G01-BW-01 Bare Bow covers from 270 gr to 830 gr
  • G01-BW-02 Bare Bow Covers from 400gr to 1170 g
  • G03-BW-03 The Hammers Bare bow kit, AL or SS
  • G04-BW-04 Bare Bow covers from 300 to 950 g
  • G24-BW-05 Bare Bow plug shaft, Stainless Steel
  • G24-BW-06 Bare Bow Neoprene amortized shaft and weights
  • Various Plugs to cover bottom weights holes, made by wood or plastic 3D printed in various colours
  • Various grips made by wood or plastic 3D printed in various colours



Hole Thread sizes:

  • Plugs / Poles side locking: 12 x M4
  • Limbs Bolts: M8
  • Limbs Bolts side locking: 4 x M5
  • Limbs Pockets side locking: 4 x Special Bolts
  • Alignment plate inner locking: 2 x M6
  • Alignment plate side locking: 4 x M5
  • Front stabs: 1 x 5/16-24 UNF
  • Rear stabs: 1 x 5/16-24 UNF
  • Cushion plunger: 2 x 5/16-24 UNF
  • Clicker and Clicker plate: 3 x M4
  • Optional cover: 4 x M4
  • Sight: 2 x 10-24
  • Grip: 2 x M4
