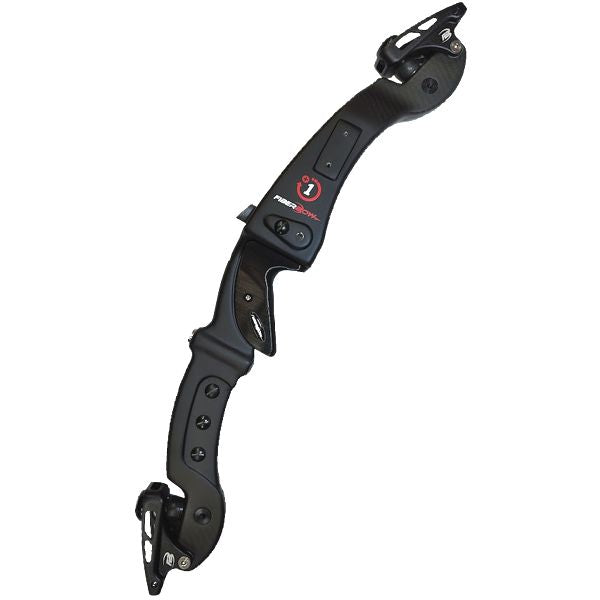

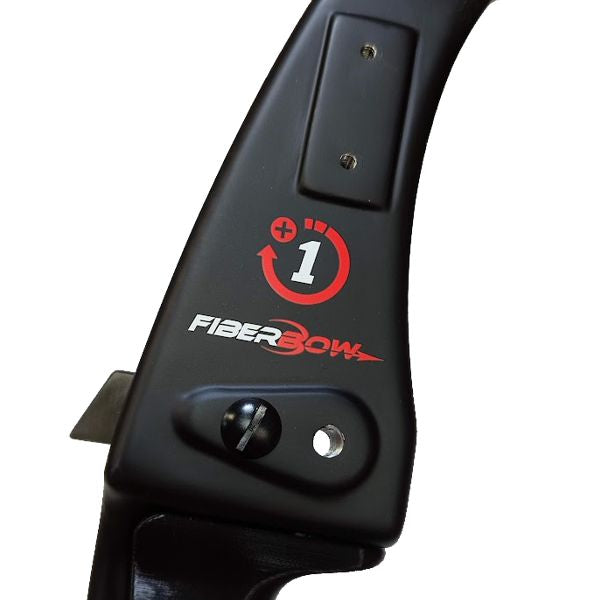

FiberBow Plus 1 riser

950 grams carbon fiber Riser Fiberbow +1 for recurve bow and barebow. The tubular structure allows to manage the total weight in relation to its stiffness.

Equipped with adjustable cradles, ILF compatible.

Designed for double fixing rest. In the lower part it is equipped with six threaded holes (three per side) for weights and v-bar.

The Fiberbow +1 riser is made of carbon riser with a tubular structure that can be used for multiple disciplines, from the neophyte who wants to undertake a performing path, to the professional who seeks the extra point from his previous session.

The tubular structure of Fiberbow +1 allows to optimize the weight in relation to its stiffness: its 950g weight is the overall weight of the central structure, the cradles and the various supplied accessories.

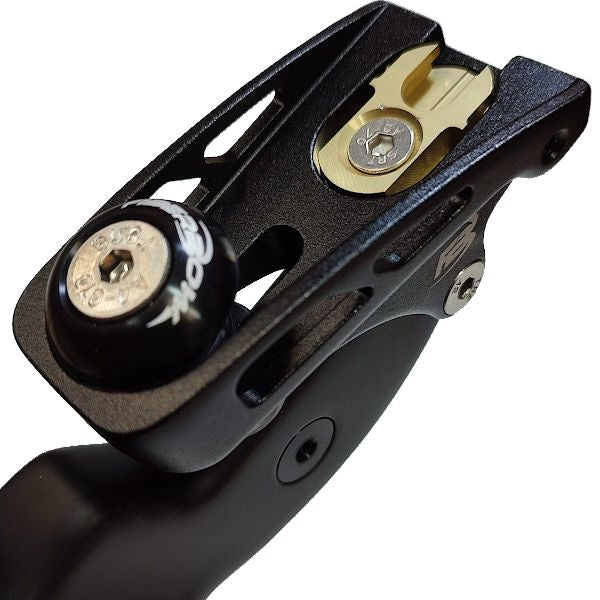

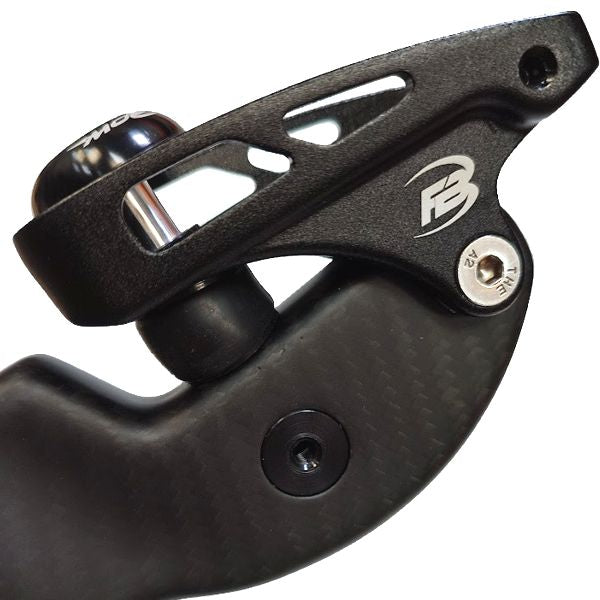

The central part has been structured with resin and carbon fiber in order to withstand high loads: tested with over 90 Lbs of load on the limb planes, the adjustable cradles can allow multiple adjustments; it is possible to change the limb poundage from +3 pounds to - 3 pounds (compared to the nominal limb).

The dowel inside of the cradle also allows to correct any limb misalignment. The adjustment of the dowel therefore leads to an alignment of the limbs and of the riser in an optimal way.

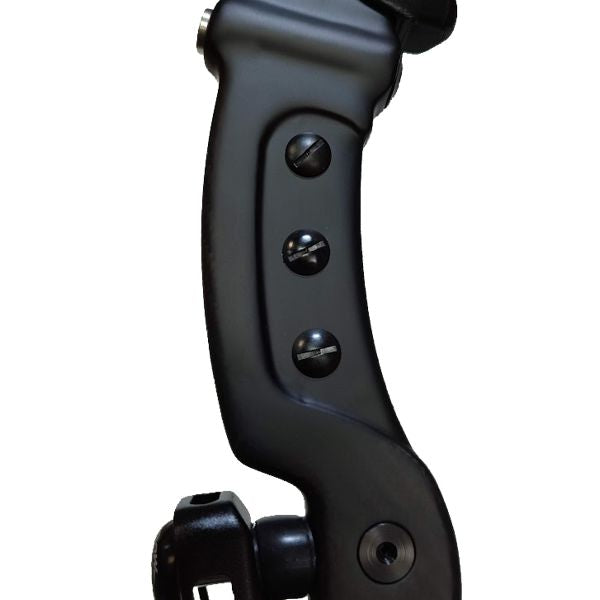

The presence of the lateral lower threaded holes allows the adjustment of the center of gravity according to your shooting style and preferences with respect to the thrust on the grip.

The lateral stabilizers can be fixed to the riser with dedicated supports that allow it to be adjusted in two different inclinations and three possible heights.

• Recurve and Bare Bow riser
• Fiberbow original Empty technology Carbon body
• ILF Limbs compatible
• Floating limbs pockets allow poundage adjustment range
• Integrated shock absorbers
• 25 inch length, RH and LH versions
• Aluminium 7075 or brass Limbs alignment plates
• Special seat for optional balancing weights
• Stainless steel limbs bolts assembled in AL 7075 blackanodized bodies
• Hard Wood or plastic 3D medium grip
• 1 front and 1 back stabs bushings
• Approx. 950 gr total weight
• Packing includes riser protection sleeve, 4 Allen wrenches.

Optional accessories available:

• PF-01-AL-BK pair of Formula limbs pocket to transform riser to +1-FBF-27
• CKP03 plastic cliker plates in different length
• Grips made by wood or plastic 3D printed
• New V-BAR for fixed mounting on VB + 01K riser

Hole Thread Sizes:

• Limbs Bolts M8
• Limbs Bolts side locking 4 x M5
• Limbs Pockets side locking 4 x M6
• Alignment plate inner locking 2 x M6
• Alignment plate side locking 4 x M5
• Front stabs 1 x 5/16-24 UNF
• Rear stabs 1 x 5/16-24 UNF
• Cushion plunger 1 x 5/16-24 UNF
• Wrap around rest 1 x M6
• Clicker and Clicker plate 2 x M4
• Side threaded holes 6 x M6
• Sight 2 x 10-24
• Grip 2 x M4
