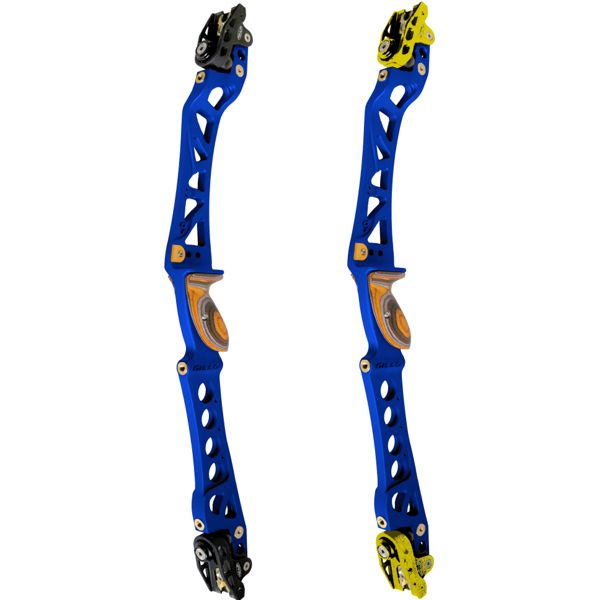

Gillo GT 29in ILF riser

GILLO GT Risers family - Changing The Game!

EXTRA LONG 29 INCH LENGTH RISER.

After 5 years of development, we are proud to introduce officially our new family of Recurve Multipurpose Risers, the GT Risers Family.

Today we are not introducing just a new model of Bow Handle with small changes from a previous version or modest tricky features, but an innovative solution that will change the future of Recurve Bows as they are intended today.

No more a riser with a limited tiller/poundage adjustment range that forces the buyer to change limbs often to cope with his/her changes of personal needs, but a technical solution that allows more than 30% of total range in poundage adjustment without any compromise to the stability of the limbs - the "Floating Pockets" technology

Recurve & Bare Bow riser

ILF Limbs compatible

Floating limbs pockets allow over 30% poundage adjustment range

Integrated shock absorbers

29in length,

RH version only

Body and Pockets machined from solid Aluminium bar

Matte sandblasted anodized surface

Aluminium 7075 Limbs alignment plates

Special round seats for optional balancing weights

Stainless steel limbs bolts assembled in AL 7075 black anodized bodies

Hard Wood, Multi-Layer color medium grip

3 front stabs bushings, 1 back stabs bushings, all made by Stainless Steel Gold colour Titanium Nitride coated

2 additional 5/16-24 UNF tapped holes on back for more stabilizers

Front center stabilizer bushing 1mm off from axis for perfect balance

Compatible to all G1, GQ and G5 Bare Bow weights, grips and accessories

Approx. 1550g total weight

Dual Colour versions RH: Black-Bkue (KBL), Gold-Blue (OBL)

• Packing includes long clicker plate, Manual with Warranty card, GRS-03 riser protection sleeve, 4 x Allen wrenches, 5x SS screws for clicker and Bare Bow weights, 2 x Brass grub screws for limbs bolts locking and 1 x G04-WH-01-K BB weight holding kit.



  Optional accessories available:

  • G04-DK6-AL/ST 6 disk weights kit (Al Black, SS Gold)
  • G01-DK6 6 Stainless Steel disk weights kit
  • G05-DK2 2 steel disk heavy weights kit
  • G02-CKK Plastic clicker plates in different colours and length
  • G01-BW-01 Bare Bow covers from 270g to 830g
  • G01-BW-02 Bare Bow Covers from 400g to 1170 g
  • G03-BW-03 - The Hammers - Bare bow kit, AL or SS
  • G04-BW-04 Bare Bow covers from 300g to 950g
  • Various Plugs to cover bottom weights holes, made by wood or plastic 3D printed in various colours
  • Various grips made by wood or plastic 3D printed in various colours



  Hole Thread sizes:

  • Limbs Bolts: M8
  • Limbs Bolts side locking: 4 x M5
  • Limbs Pockets side locking: 4 x M6
  • Alignment plate inner locking: 2 x M6
  • Alignment plate side locking: 4 x M5
  • Front stabs: 3 x 5/16-24 UNF
  • Rear stabs: 3 x 5/16-24 UNF
  • Cushion plunger: 2 x 5/16-24 UNF
  • Clicker and Clicker plate: 3 x M4
  • Optional cover: 4 x M4
  • Sight: 2 x 10-24
  • Grip: 2 x M4
